IRGP-1001
IRGM-1004 |
IRIG Analog
Distribution |
|
 |
| For High Quality IRIG Signal
Distribution |
|
|
|
|

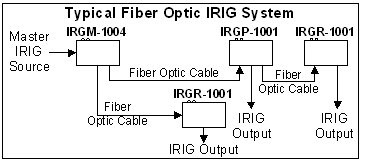

The LuxLink® IRGM-1004 consists of an optical transmitter that
converts an electrical IRIG A through H input signal into four individual
optical output signals for distribution over separate fiber optic cables to
IRGR-1001 receivers. Multiple IRGM-1004 units may be “daisy-chained” when
more than 4 output channels are required. The IRGP-1001 is an optical
repeater that is used to implement a drop-and-repeat linear IRIG A through E
distribution networks. NASA-36 and IEEE-1344 are also supported.
Both units are compatible with IRGT-1001 and IRGR-1001 transmitters and
receivers. Integral indicators are also provided on both units to continuously
indicate the presence of IRIG signals as well as the presence of operating
power making system troubleshooting simple.
|
| |
| Specifications |
|
|
Important Features |
| System Bandwidth (min) |
100 Hz to 500 KHz (+0,-3dB) |
|
· 12 dB Loss
Budget |
| Protocols |
IRIG A,B,D,E,H, NASA36 |
|
· Cost effective |
| Input / Output Impedance |
600 ohms |
|
· Signal & Power
Indicators |
| Input / Output Level |
3 volt pp, (5 mA ) |
|
· Multimode &
Single mode |
| Signal/Noise Ratio |
60 dB minimum |
|
Versions
available |
| Linearity |
2.0% typical |
|
· Single model for stand
alone or
rack mount |
| Optical Output Power |
-16 dBm (multimode),
-16 dBm (single-mode) |
|
·
Din
Rail mount option |
| Optical Loss Budget |
0-12 dB (multimode),
0-12 dB (single-mode) |
|
|
| Signal Connectors |
BNC |
|
|
| MTBF (Mil-HDBK-217D) |
100,000 Hours |
|
|
| Operating Temperature |
-35º to +75º
C |
|
|
| Power Requirements |
11-24 VAC/DC @350 mA |
|
|
| Operating Temperature |
-35 to +75 degrees C |
|
|
| Physical Size (IRGP) |
5.0” x 3.0 x 1.0"
127mm x 76mm x 25.4mm |
|
|
| Physical Size( IRGM) |
5.0” x 7.0 x 1.0"
127mm x 178mm x 25.4mm |
|
|
|
|
|
|
*Note all specifications are subject to change without notice
Copyright 2012
|
Fiber Optic Communications Systems
