PS-1210S    Power Supply   PS-1210S Power Supply - Click for larger image
For Powering all Liteway® Transmission Systems

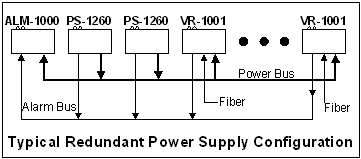

 Typical redundant power supply configuration


The Liteway® PS-1210S is a compact switching stand-alone or rack mountable power supply that can be used to power multiple Liteway fiber optic transmission systems from a 90 to 240 volt 50/60Hz source.

The PS-1210S has power, alarm and overload indicators as well as internal circuitry that will protect the unit in the event of an overload. Should such an overload occur, the power supply output will immediately drop to 0 and then automatically reset itself when the overload is removed. The PS-1210S also has the ability to be paralleled for redundant operation when required.

This efficient supply is compliant with the US Energy Independence and Security Act of 2007 and current California Energy Commission (CEC) efficiency standards.

Specifications Important Features
DC Output Voltage  12V unregulated* (12-17VDC)    · Redundant Operation and "hot swappable"
DC Output Current  1 Ampere  · Self Resetting Fuse
AC Input  95 to 240 VAC 50/60 Hz  · Power & Overload Indicators
AC Input Connector  IEC 60320 C14  · Stand-alone, DIN  or Rack
    Mountable (same unit)
Indicator Lights  Power, Overload, Alarm**
Operating Temperature  -20 to +75 °C
Humidity <95% non-condensing
MTBF >100,000 hours
Weight 1 lb
Physical Size (mm)  5.0" x 4.0" x 1.0"
(127mm x 101.6mm x 25.4mm)


Note all specifications are subject to change without notice
* Output can be as high as 17VDC with no load.

** The Alarm light is used to indicate a failure of one supply when two or more are connected for redundant operation.


-US models

-EU models

 USA Power Cord  European Union Power Cord

-UK models -AU models
 United Kingdom Power Cord  Australia Power Cord
