| RSW-2002
|
Redundant IRIG Switch |
|
 |
| For Fail-Safe Redundant
IRIG
Applications |
|
|
|
|

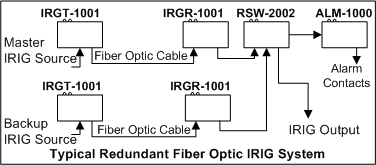

The LiteLink® RSW-2002 is a two input single output automatic switch designed
to implement a redundant, fail-safe IRIG signal transmission. The RSW-2002 may be used with any fiber optic system to
implement a redundant, fail-safe video transmission system.
Upon the loss
of primary IRIG signal, the RSW-2002 will automatically switch the remaining
secondary (backup) IRIG signal to the output as well as activate the front

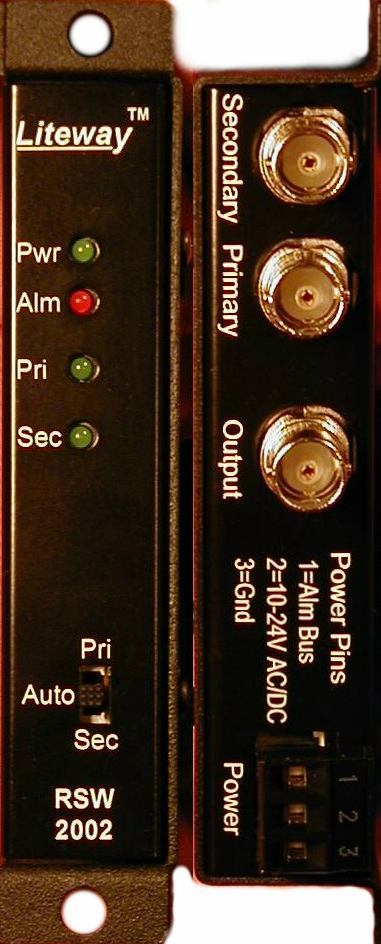

panel alarm indicator and ALM-1000 Alarm Sensing Unit if used. Indicators are provided to continuously
indicate the presence of signals in each channel as well as the
presence of operating power making system troubleshooting simple
|
| |
| Specifications |
|
|
Important Features |
| Compatibility |
IRIG A-H |
|
· 100 Hz to
1 MHz Bandwidth |
| Bandwidth (per channel) |
100 Hz to 1 MHz (+0,-3dB) |
|
· Signal & Power
Indicators |
| Input/Output Impedances |
600 ohms |
|
· Auto or
manual operation |
| Input/Output Levels |
3 volt pp maximum |
|
· Alarm
output with ALM-1000 |
| Differential Gain |
0.5% maximum |
|
·
Stand-alone, DIN or Rack
Mountable (same unit) |
| Signal/Noise Ratio |
75 dB minimum |
|
|
| Phase Shift |
0.3º maximum |
|
|
| Switch-Over time |
10 milliseconds maximum |
|
|
| Indicators |
Power, Input 1, Input 2, Alarm |
|
|
| Signal Connectors |
BNC |
|
|
| Power Requirements |
11-24 VAC/DC @150mA |
|
|
| Operating Temperature |
-35 to +75 degrees C |
|
|
| Humidity |
<95% non-condensing |
|
|
| MTBF (per MIL HBK 217) |
>120,000 hours |
|
|
| Physical Size (mm) |
5.0” x 3.0" x 1.0"
(127mm x 76mm x 25.4mm) |
|
|
Note all specifications are subject to change without notice.
